Ozone (O3) is an allotrope of oxygen (O2). It is a chemically active gas. It has an unstable structure and is easily split into O2 and O atoms. Ozone has strong oxidizing and sterilizing properties.
Ozone (O3) is an allotrope of oxygen (O2). It is a chemically active gas. It has an unstable structure and is easily split into O2 and O atoms. Ozone has strong oxidizing and sterilizing properties. It is One of the strongest oxidants naturally. Therefore, it is widely used in: water treatment; food processing, storage, preservation; household appliances; medical and health and other fields,
The BDD ozone generator uses the BDD electrode plate as the anode, and the BDD electrode or other metal sheet as the cathode to make the Generator. Under the action of an external DC power supply, the water is decomposed into oxygen molecules and oxygen atoms, oxygen molecules and The oxygen atoms then collide to generate ozone. So as to achieve the function of disinfection and sterilization.
Reaction in Anode:
H2O → 1/3O3+ 2H++2e– E°=+1.5 V
H2O → 1/2O2+2H++2e– E°=+1.23 V
Reaction in Cathode:
2H++2e → H2 E°=0 V
O+4H++4e– → H2O E°=+1.23 V

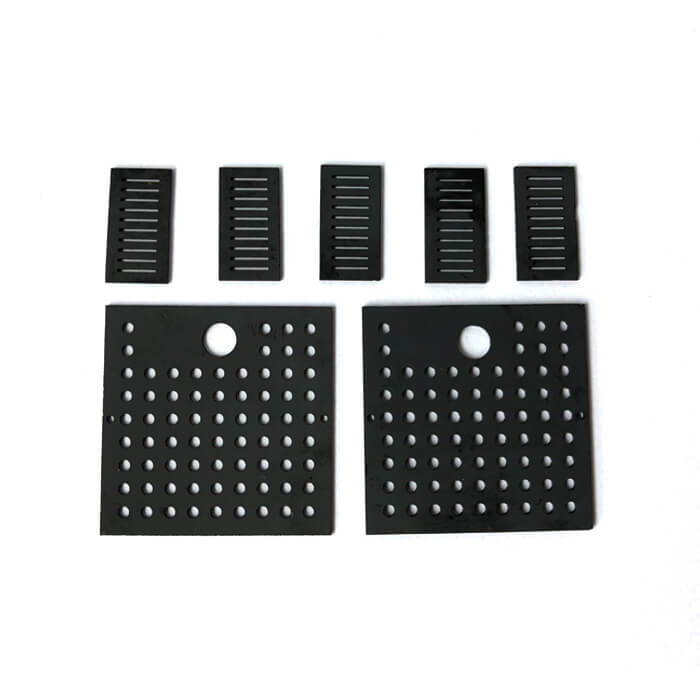

BDDA plate
